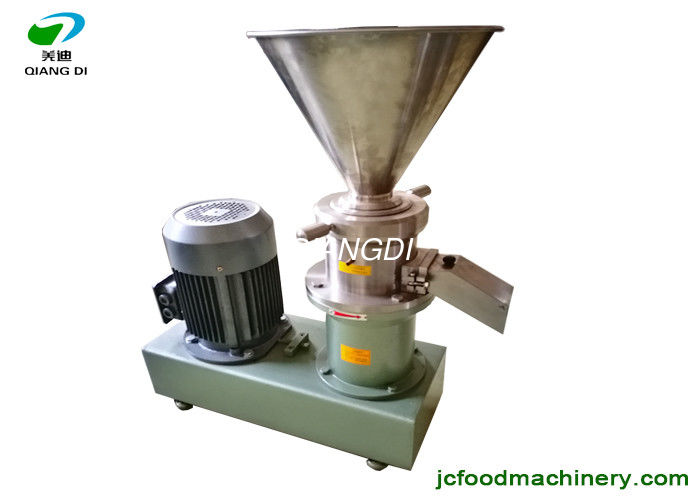

commercial peanut/almond/sesame/nuts butter paste grinding machine colloid mill
Specification:
Model:JMS-80
Voltage: 380V /50Hz
Power:4KW
Fineness: 2-50um
Capacity:0.2-1.5t/hr
Size: 840*410*1000 mm
Weight:150kg
Material: stainless steel and cast iron.
Other model specification:
Model |
JMC-60 |
JMC-80 |
JMS60 |
JMS-80 |
JMS-120 |
JMS-130 |
JMS-150 |
Vertical |
Vertical |
Split-Body |
Split-Body |
Split-Body |
Split-Body |
Split-Body |
Power Supply |
220V/50Hz |
380V/50Hz |
220V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
Motor Power |
1.5KW |
4KW |
2.2KW |
4KW |
7.5KW |
11KW |
15KW |
Output |
30-500kg/h |
80-1500kg/h |
30-500kg/hr |
80-1500kg/h |
100-2000kg/h |
200-4000kg/h |
500-6000kg/h |
Hopper |
4.5L |
8.5L |
4.5L |
8.5L |
15L |
15L |
22L |
Weight |
43kg |
86kg |
58kg |
140kg |
210kg |
295kg |
330kg |
Machine size |
27*27*70cm |
32*31*87cm |
50*25*52cm |
66*28*86cm |
75*40*100cm |
88*38*111cm |
96*48*112cm |
Package Size |
36*36*80cm |
42*42*87cm |
55*32*54cm |
72*39*78cm |
82*46*86cm |
95*48*100cm |
96*52*120cm |
Working principle:
The working principle of the colloidal mill is that: Under the effect of centrifugal force and being run by relatively high speed between the rotating gear and the fixed gear, the liquid and the semi-liquid materials is efficiently emulsified, homogenized, dispersed and mixed during the course of being cut, milled and shocked with high frequency. After that you can get the satisfied and processed material.
Application Scope:
The colloidal mill is widely applied in sorts of products of many fields by its advantage such as foodstuffs industry, medicine industry, chemical industry and everyday chemical industry etc.; the products including soybean milk, fruit jam, peanut butter, artificial corn milk, cream, perfumery compound, pigment, greasing oil, dyestuff, pant, fish live oil, pollen, honey, tooth-paste and so on.
