industrial automatic peanut butter production line/peanut butter machine

industrial automatic peanut butter production line/peanut butter machine

    • industrial automatic peanut butter production line/peanut butter machine
    • industrial automatic peanut butter production line/peanut butter machine
  • industrial automatic peanut butter production line/peanut butter machine

    Product Details:

    Place of Origin: China
    Brand Name: JIANGCHEN
    Certification: CE,ISO9001
    Model Number: JC-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: USD150000-USD200000
    Packaging Details: PLYWOOD WOODEN
    Delivery Time: IN 35 DAYS AFTER 50% DEPOSIT
    Payment Terms: T/T inadvance, Western Union, MoneyGram
    Supply Ability: 1 SET
    Minimum Order Quantity: 1 set
    Detailed Product Description
    Peanut Butter Capacity: 400-450KG/Hr Total Power: 70KW
    Voltage: 380V,3PH

    industrial automatic peanut butter production line/peanut butter machine

    commercial automatic peanut butter making plant/peanut butter production line for 400-500kg/hr

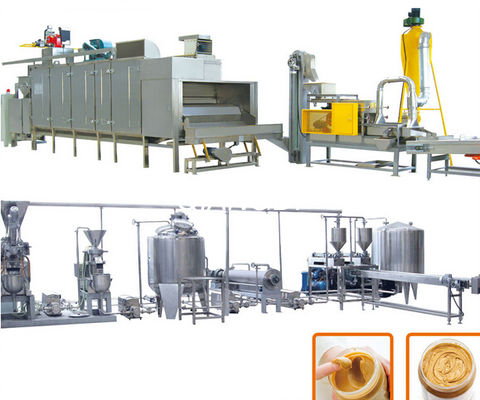

    peanut butter making plant flowchart:



    Capacity:400-500Kg/hr

    processing :
    Elevator--Roasting---Cooling--Peeling--Selecting --Milling--Mixing--Cooling--de-gasing--Liquid filling machine
    Roasting:
    Batch roaster’s working temperature is 200-210 ºC, 20-30minutes.use batch roaster will bake some delicious smells.
    Cooling:
    Peanut will be send cooling belt to cool.
    Peeling:
    put the roasted peanuts into peeler to take off the red skin,
    the double rollers will frication the red skin, the simple cyclone system will suck
    the red skins, most of them will be put in half-piece, then fall to the selecting conveyor, the over-roasted and
    un-blanched peanut kernel is picked up by manual or mechanical.
    Primary grinding
    Using steel grinder to make the first grinding;
    Second grinding
    Using colloid grinder to make the second grinding, the fineness of grinding is
    controlled below 7um, temperature of grinding is controlled below 68C.
    Mixing:
    make the butter more homogeneous
    Cooling:
    the butter through second grinding should be cooled immediately.
    The temperature should go down 45C.
    Degasser :
    Take out the air from peanut butter.
    Storage tank:
    settling down in the storage tank till the temperature drop to air
    temperature.
    Packing:
    by the filling machine, the finished peanut butter is packed into 200g/500g/1000g bottle.
    We also could design it as clients' requirement, such as capacity, 400-500kg/h



























    peanut butter making plant specification:





    Model QDSHJ-01 peanut butter making plant
    Voltage 380v
    power 70kw
    butter capacity 400-500kg/hr
    weight 10000kg
    peanut butter package  plastic bottle ,250ml, 450ml other volume can customize











    peanut butter making plant video on youtue:  https://youtu.be/Lznpl2mUdAM









    peanut butter making plant Working principle:


    The working principle of the colloidal mill is that: Under the effect of centrifugal force and being run by relatively high speed between the rotating gear and the fixed gear, the liquid and the semi-liquid materials is efficiently emulsified, homogenized, dispersed and mixed during the course of being cut, milled and shocked with high frequency. After that you can get the satisfied and processed material.


    peanut butter making plant Application Scope:


    The colloidal mill is widely applied in sorts of products of many fields by its advantage such as foodstuffs industry, medicine industry, chemical industry and everyday chemical industry etc.; the products including soybean milk, fruit jam, peanut butter, artificial corn milk, cream, perfumery compound, pigment, greasing oil, dyestuff, pant, fish live oil, pollen, honey, tooth-paste and so on..





    peanut butter making plant detail pictures:





    commercial automatic peanut butter making plant/peanut butter production line for 400-500kg/hr



    commercial automatic peanut butter making plant/peanut butter production line for 400-500kg/hr



    commercial automatic peanut butter making plant/peanut butter production line for 400-500kg/hr
