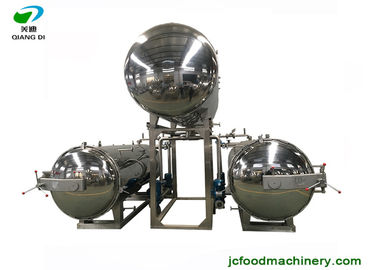

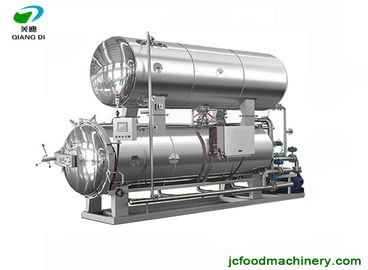

industrial semi-automatic electric autoclave sterilizer machine for bottles/pouches/bags/canned food

industrial semi-automatic electric autoclave sterilizer machine for bottles/pouches/bags/canned food

    • industrial semi-automatic electric autoclave sterilizer machine for bottles/pouches/bags/canned food
    • industrial semi-automatic electric autoclave sterilizer machine for bottles/pouches/bags/canned food
    • industrial semi-automatic electric autoclave sterilizer machine for bottles/pouches/bags/canned food
    • industrial semi-automatic electric autoclave sterilizer machine for bottles/pouches/bags/canned food
  • industrial semi-automatic electric autoclave sterilizer machine for bottles/pouches/bags/canned food

    Product Details:

    Place of Origin: CHINA
    Brand Name: QIANGDI
    Certification: CE,ISO9001
    Model Number: QD-PLH-9

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $5000~$30000/set
    Packaging Details: plywood case
    Delivery Time: in 25-35 days after payment
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 20sets/month
    Contact Now
    Detailed Product Description
    Name: Electric Autoclave Sterilizer Function: Sterilization For Packed Food And Juice
    Weight: 500kg-2000kg Heating: Steam,electric
    Cooling Type: Indirect Heating And Indirect Cooling Application: Glass ,plastic ,PP Package Food And Beverage



    We can design different capacity electric autoclave sterilizer from customer request, suit for canned food,pouches food,glass and plastic bottle juice etc.

    Different sterilization method,like water bathing type,steam spraying type etc.

    Different design for electric heating version and steam heating version,electric+steam heating version.

    Different operation method,semi-automatic version and full automatic operation version.









    industrial semi-automatic electric autoclave sterilizer machine for bottles/pouches/bags/canned food









    electric autoclave sterilizer main specification:



    internal pot diameter    design customer needs
    setting pressure 0.35MPa
    design temprature 145 degree
    pot material SUS 304
    body thickness  4mm
    cooling and heating type   indirect heating and indirect cooling
     application package type glass,plastic, PP,PE etc



    electric autoclave sterilizer Video on youtube:https://youtu.be/RDDdae1bZwY



    electric autoclave sterilizer Working Principle:
    1. Water filing
    Prior to the start of the process, the retort is filled with a small volume of process water such that the water level is below the bottom of the baskets. This water can be used for successive cycles if desired, as it is sterilizec with each cycle.

    2. Heating
    Once the cycle is begins, the steam valve opens and the circulation pump is switched on. The mixture of steam and water spraying from top of the retort vessel creats highly turbulent convection currents that rapidly homogenizes the temperature at every point in the retort and between the containers.

    3. Sterilization
    Once the programmed sterilization temperature has been reched, it is held for the programmed time with +/-1 °F . Similarly, the pressure is kept with +/- 1 psi by adding and venting compresed air as needed.

    4. Cooling
    At the end of the sterilization step, the retort switches into cooling mode. As the process water continues to be circulated through the system, a portion of it is diverted through on side of a plate heat exchanger. At the same time, cold water passes through the other side of plate heat exchanger. This results in the process water inside the retort chamber being cooled in a controlled fashion.

    5. End of cycle
    Once the retort is cooled to the programmed temperature setpoint, the cold water inlet valve on the heat exchanger closed and the pressure inside thr retort is autoamtically relieved. The water level is lowered from the maximun down to the medium level. The door is equipped with a safety locking device which prevents the oping of the door in the case of residual pressure or high water level.
    Sweet Corn Retort Autoclave Potretort autoclave pot

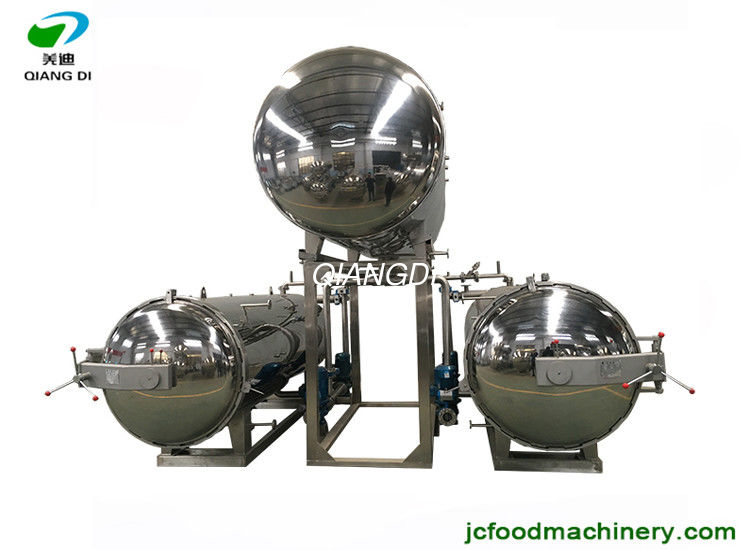

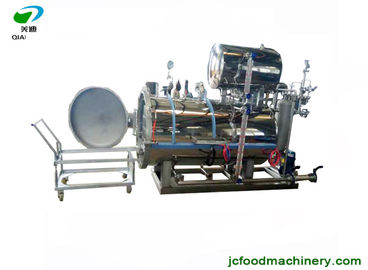

    electric autoclave sterilizer pictures:





    industrial semi-automatic electric autoclave sterilizer machine for bottles/pouches/bags/canned foodindustrial semi-automatic electric autoclave sterilizer machine for bottles/pouches/bags/canned food

    industrial semi-automatic electric autoclave sterilizer machine for bottles/pouches/bags/canned food
