| Place of Origin: | CHINA |
| Brand Name: | QIANGDI |
| Certification: | ISO9001 |
| Model Number: | TG-250 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD7500~8500 |
| Packaging Details: | plywood case |
| Delivery Time: | in 10 days after payment received |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 100pcs per month |
| Voltage: | 380V/50Hz，3PH | Grinder Power: | 5KW+5KW |
|---|---|---|---|
| Weight: | 400KG | Size: | 2800*1400*2200MM |
| Soymilk Capacity: | 1000L/HR |
big capacity 1ton automatic soy milk production machine/soy milk production line equipment
automatic soy milk production machine specification:
| Model | TG-30 | TG-50 | TG-80 | TG-100 | TG-150 | TG-250 |
| Capacity(soaked beans) | 5-6KG/HR | 10-12KG/HR | 15-20KG/HR | 20-30KG/HR | 40-60KG/HR | 80-100KG/HR |
| heating supply | electric | electric or LPG(NEED CUSTOMIZE) | electric or LPG(NEED CUSTOMIZE) |
External steam boiler, Steam capacity:>25kg/hr |
External steam boiler, Steam capacity:>50kg/hr |
External steam boiler, Steam capacity:>80kg/hr |
| heating power | 6kw | 12kw | 18kw | 18KW | 48KW | 98KW |
| cooking tank capacity | 80L/Hr | 120L/Hr | 160L/Hr | 220L/Hr | 600-700L/Hr | 1100L/Hr |
| weight/G.W | 55/70kg | 105/120kg | 130/150kg | 140/160kg | 250/300kg | 420/500kg |
| Over dimmensions |
1060*500 *1350mm |
600*1200 *1550mm |
680*1690 *1550mm |
500*600 *1250mm |
1000*1200 *1850mm |
1400*1800 *2200mm |
| Main functions | Beans grinding, okara separating, twice grinding,soymilk cooking | |||||
automatic soy milk production machine features:
Do tofu, the need to increase bean product pressing machine.
The machine of entire stainless steel structure, twice grinding paste systems, two barrel cooking soymilk,

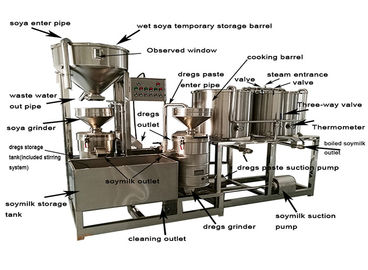

composed of two grinding & separating machines, suction pumps, bean-dreg pumps, soybean milk barrel, bean-dreg barrel, cooking soybean barrel and so on. External connect steam.
Application:
Large scale bean processing factory, supermarket and so on.

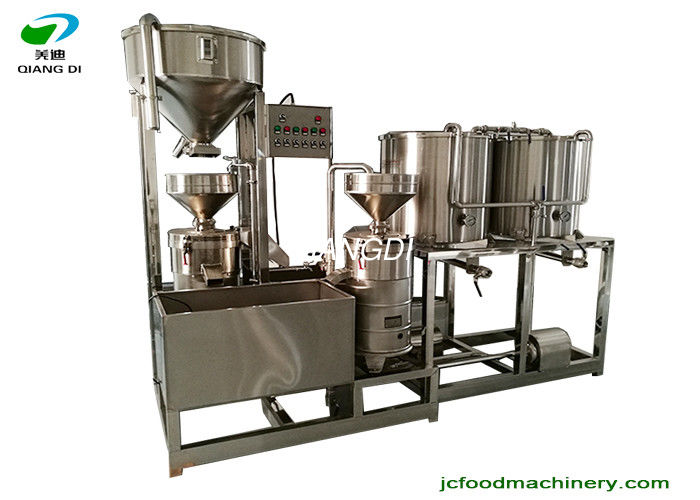

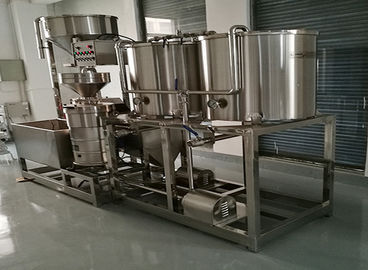

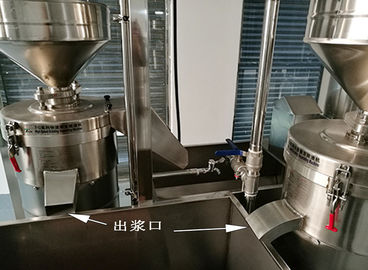

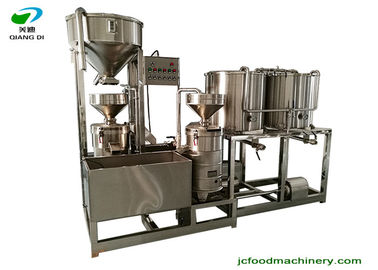

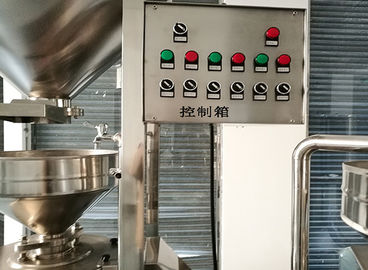

automatic soy milk production machine pictures:
